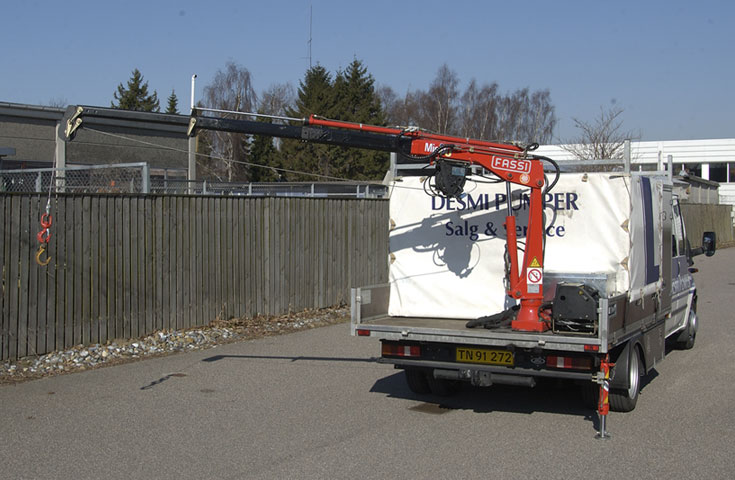

M25A Fassi crane

LIFTING CAPACITY:
up to 2,65 tm

MAX OUTREACH:
up to 4,70 m

OVERALL DIMENSIONS:
l 0,83 m , w 0,34 m , h 1,62 m

HYDRAULIC EQUIPMENT:
Walvoil monobloc distributor bank
Immediate stop device and pressure gauge

CHARACTERISTICS:
rotation with hydraulic motor and pinion mechanically limited to 325°



STANDARD

MOL - Manual Outriggers Lock
MOL - Manual Outriggers Lock
A security system that detects the engagement of the safety latch of the primarily locking pin of side manually extendable outrigger supports, at rest in the transport position. It is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
CPM - Crane Position Monitoring
CPM - Crane Position Monitoring
A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
FSC/L - Fassi Stability Control/Low
FSC/L - Fassi Stability Control/Low
System that allows crane operation only when all the outrigger supports are completely extended and all the outrigger rams are placed in working position touching the ground.
LLV - Load Limiting Verification
LLV - Load Limiting Verification
Rated load reader for manual extensions. It is provided in combination with the electronic (for Micro cranes) and HO hydraulic lifting moment limiting devices.
WL - Walvoil Distributor Bank
WL - Walvoil Distributor Bank
Parallel monobloc proportional hydraulic distributor bank. It is characterized by strength and simplicity of operation.
MPES - Multi Power Extension System
MPES - Multi Power Extension System
A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances.
UHSS - Ultra High Stregth Steel
UHSS - Ultra High Stregth Steel
Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.
FWD - Fewer Welds Design
FWD - Fewer Welds Design
Fewer welded joints, the stronger the structure will be. Structural components made out of bended steel with a welded closing plate in lieu of four corners welded structures or monolithic structure likes those for the outer boom and sliding sections with one single welded side: balanced elasticity under load and ideal resistance to fatigue.
CQ - Cast Quality
CQ - Cast Quality
Fassi use for more then 35 years cast components with high mechanical characteristics for various important structural components, such as the bottom section (pinion) and the head of the column, the column support, the heads of the ram rods and the cylinder bottoms, the connecting rods and other minor components: less weldings, higher performance to fatigue cycles.

OPTIONAL

RRC - Radio Remote Control
RRC - Radio Remote Control
Analogue radio remote control, which remotely controls the crane functions.
Fassi knuckle boom light-duty cranes

Particular attention is given to the design and production of knuckle boom cranes with a lifting capacity of between 1 and 12 t/m, bearing in mind the growing market needs and the use of these machines. Fassi light-weight cranes, which are also available in a wide range of versions, starting from “micro” cranes, combine reduced weight, compactness and limited dimensions, but without foregoing all those factors typical of Fassi quality, both in the structure and in the details. These light-weight loader cranes mean that you can have Fassi quality even on light-weight trucks, even 3.5 TM (total mass) trucks that can be driven with a normal driving license.
Radio Remote Controls - OPTIONAL

fassi-radio-remote-control-simply SIMPLY
Easy and compact. 4 linear ergonomic levers. The switch allows to  control up to 6 functions.
fassi-radio-remote-control-linus-4 LINUS 4
Compact and strong. 4 linear ergonomic levers. The switch allows to control up to 6 functions.
fassi-radio-remote-control-handy HANDY
The switch allows to control up to 6 functions. Extremely compact, this is the ideal for a single-hand control. 8 push-buttons allow the proportional control up to 4 functions simultaneously.
fassi-radio-remote-control-pilot-2 PILOT CONTROL
Innovative control handle with sensors allowing to control the crane functions (rotation and lifting) with the hand movement. The exit of the extension booms and  the movement of the accessories can be carried out with a small joystick with 2 axis. The device is equipped with a vibrating alarm making the perception of the inclination angle easier with an intensity change.
